Sarlink® TPV

A pioneer in TPV solutions, Sarlink®, has been steadily replacing thermoset rubber in sealing applications for over four decades.

Sarlink® TPV for Automotive

Sarlink® TPVs are a globally recognized brand trusted by major automakers (OEMs), steadily replacing EPDM rubber due to advancements in processing, design flexibility, and weight reduction. As the premier choice for long-lasting, flexible automotive parts, Sarlink® TPVs offer:

  • Exceptional Elasticity: Ensuring optimal performance and part integrity.
  • Unmatched Durability: Resistant to UV, ozone, chemicals, and fluids for long-term reliability.
  • Lightweight Design: Contributing to improved efficiency.
  • Beyond the Material: Teknor Apex Expertise

Teknor Apex doesn't just supply high-performance materials– we're your partner in success. Our deep understanding of polymers combined with dedicated application development support empowers our customers to manufacture high-performance automotive components efficiently and cost-effectively.

Key Benefits of Sarlink® TPVs:

  • Excellent Elastic Properties
  • UV and Ozone Resistance
  • Chemical and Fluid Resistance
  • Superior Long-Term Performance
  • Adhesion to Polyolefins and Other TPEs
Teknor Apex Product Logos
Sarlink®

Sarlink 17100 Series

Sarlink® 17100 Series: Next Generation High Flow TPVs for Injection Molding

The Sarlink 17100 Series is the latest generation of super high-flow TPV materials ensuring the best in class surface appearance for injection molded parts. These materials exhibit excellent UV resistance, low fogging, and long-term performance. Available from 55 to 80 Shore A in black, the Sarlink 17100 series consist of robust formulations allowing for a broader processing window versus competitive TPVs.

Technical Data Sheets
Sarlink®

Sarlink 3100 Series

Sarlink® 3100 Series: General Purpose TPVs

These general-purpose TPVs exhibit well-balanced flow characteristics yielding a superior surface appearance. Available from 35 Shore A to 45 Shore D (in black and natural), this Sarlink® series is partially cross-linked, offers excellent melt elasticity, and can be processed by injection or blow molding and extrusion.

Technical Data Sheets
Sarlink®

Sarlink 4100 Series

Sarlink® 4100 Series: High Performance TPVs

These high-performance TPVs are fully cross-linked, exhibiting low tension and compression set and superior resistance to flex-fatigue. The Sarlink® 4100 series is available from 45 Shore A to 50 Shore D (in black and natural), is resistant to abrasion and chemicals, and can be processed by injection molding, blow molding, and extrusion.

Technical Data Sheets
Sarlink®

Sarlink 4700 Series

Sarlink® 4700 Series: High Flow Molding TPVs

With these high-flow TPVs, hard-to-fill parts now mold with ease. The Sarlink® 4700 series delivers faster cycle times and improved mold release versus competitive TPVs. Available from 50 Shore A to 40 Shore D in black only, these are low-fogging TPVs with excellent UV and chemical resistance and long-term aging performance.

Technical Data Sheets
Sarlink®

Sarlink 5700 Series

Sarlink® 5700 Series: High Performance Extrusion TPVs

Engineered for optimum extrusion performance, the Sarlink® 5700 Series exhibits excellent melt strength, with a very controlled morphology for a best-in-class surface appearance. These TPVs deliver superior UV resistance and exceptional color retention without blooming and are available from 25 Shore A to 50 Shore D in black only.

Technical Data Sheets
Sarlink®

Sarlink 6100 Series

Sarlink® 6100 Series: TPVs with Superior Colorability

The lighter, natural color of the Sarlink® 6100 Series allows for superior colorability versus other TPVs. These products exhibit excellent flow behavior for molding large complex parts and are non-hygroscopic, so pre-drying is unnecessary. The Sarlink® 6100 series is available from 35 to 90 Shore A (in natural only), is resistant to hydrocarbons and aqueous liquids, and exhibits good thermal stability and low fogging properties.

Technical Data Sheets
Sarlink®

Sarlink 6700 Series

Sarlink® 6700 Series: UV Stable TPVs with Superior Colorability

The next-generation of high-flow TPVs for automotive interior applications, the Sarlink 6700 series is UV resistant, low fogging, and exhibits excellent surface appearance and haptics. These are non-hygroscopic TPVs, so pre-drying is not necessary, and their light, natural appearance allows for excellent colorability for custom-color automotive interior applications including soft-touch grips, knobs, and buttons, bin mats, cup holder liners and floor mats. The Sarlink 6700 Series is avialble from 55 to 75 Shore A, in natural only.

Technical Data Sheets
Sarlink®

Sarlink R2 3100 Series

Sarlink® R2 3100B Series: TPVs with up to 40% Recycled Content

By incorporating up to 40% post-industrial recyclate (PIR), depending on hardness, the Sarlink® R2 3100B Series promotes a circular economy and reduces reliance on virgin fossil-based resources and energy. Made with carefully-selected post-industrial recyclate (PIR), these materials process and perform similarly to their virgin counterparts, and can be used in injection molding or extrusion applications, or can be co-molded or co-extruded with polypropylene or other thermoplastic elastomers (TPEs).

Technical Data Sheets

Applications

Sealing Systems

A vehicle's sealing system provides a flexible interface between the various components of the vehicle—be it metal, plastic, or glass—to prevent the passage of air, water, or noise into the cabin. Sarlink® continues to displace EPDM in sealing systems due to its lower density which yields lighter-weight parts, and faster, more efficient manufacturing. This leads to serious cost savings.

With first-class surface quality and weatherability, Sarlink® products remain consistent in gloss and color after long-term UV exposure. Sarlink® exhibits excellent adhesion to TPE or EPDM substrates with or without a slip coat, and select grades are designed for a lower coefficient of friction against glass or painted steel. With both TPE and TPV Sarlink® product offerings, Teknor can recommend the technology that best fits the application.

  • Belt-Line Seals
  • Corner Molding & End Caps
  • Gap Fillers
  • Glass Run Channels
  • Slip Coating Materials

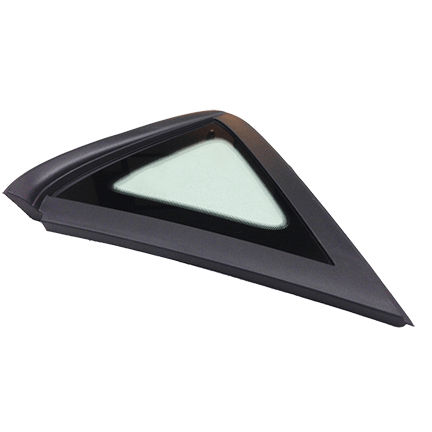

  • Window Encapsulation
sealing systems

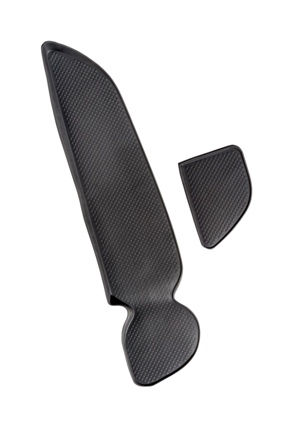

Interior

TPEs play an important role in automotive interiors, forming parts that protect the cabin from dirt, wear, and stains, while also providing a soft-touch feel to improve overall passenger comfort. The Sarlink® product line delivers superior performance in interior applications with excellent scratch and mar resistance, as well as protection against staining and cleaning solutions, and low fogging and VOCs. Sarlink® products exhibit excellent adhesion to polyolefins using multi-shot molding, providing a soft cushion to otherwise rigid parts.

Ultimately, Sarlink® delivers an ideal combination of haptics and aesthetics to meet your automotive interior needs. While Sarlink® TPVs exhibit a matte finish and rubber-like feel, Sarlink TPEs can be customized to have a glossy finish, and a satin-like feel. The TPE compounds can even be color-matched to create a consistent palette throughout the entire vehicle interior.

  • Bin Mats
  • Cup Holder Liners
  • Cable Ducts
  • Floor Mats
  • Soft-Touch Grips for Knobs or Buttons
  • Thermoforming Applications
  • Floor Mats
boot

Exterior

Automotive exteriors include static seals and molded or extruded trim that close the gaps between different parts of the vehicle and protect it from damage while improving the vehicle's aerodynamics. For automotive exteriors, the Sarlink® product line offers many valuable advantages, including a Class A surface appearance, excellent UV stability, and resistance to scratching and chipping. Furthermore, Sarlink® remains flexible and elastic at extreme temperatures and demonstrates outstanding long-term performance, ensuring a tight seal over time.

Teknor is unique in offering both TPV and styrenic TPE solutions for exterior molding and extrusion applications. Each technology offers distinct benefits: Sarlink® TPVs have improved chemical resistance, and are unaffected by OEM cleaning agents and waxes. Also, Sarlink® TPVs outperform competitive products in long-term performance. Sarlink® TPEs allow engineers more flexibility in designing parts. Lower in viscosity, Sarlink® TPEs can be molded into more complex, intricate geometries.

  • Bumper Extensions

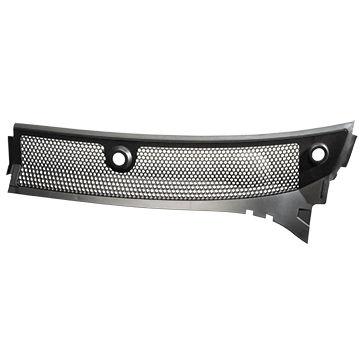

  • Hood to Cowl Seals
  • Large Truck Flex Extenders/Aerodynamic Trim
  • Mirror Gaskets
  • Molded & Extruded Trim
  • Roof Ditch (Molding & Extrusion)
  • Wheelhouse Strakes
  • Windscreen Finishers
  • Wiper Blade Spoilers
boot

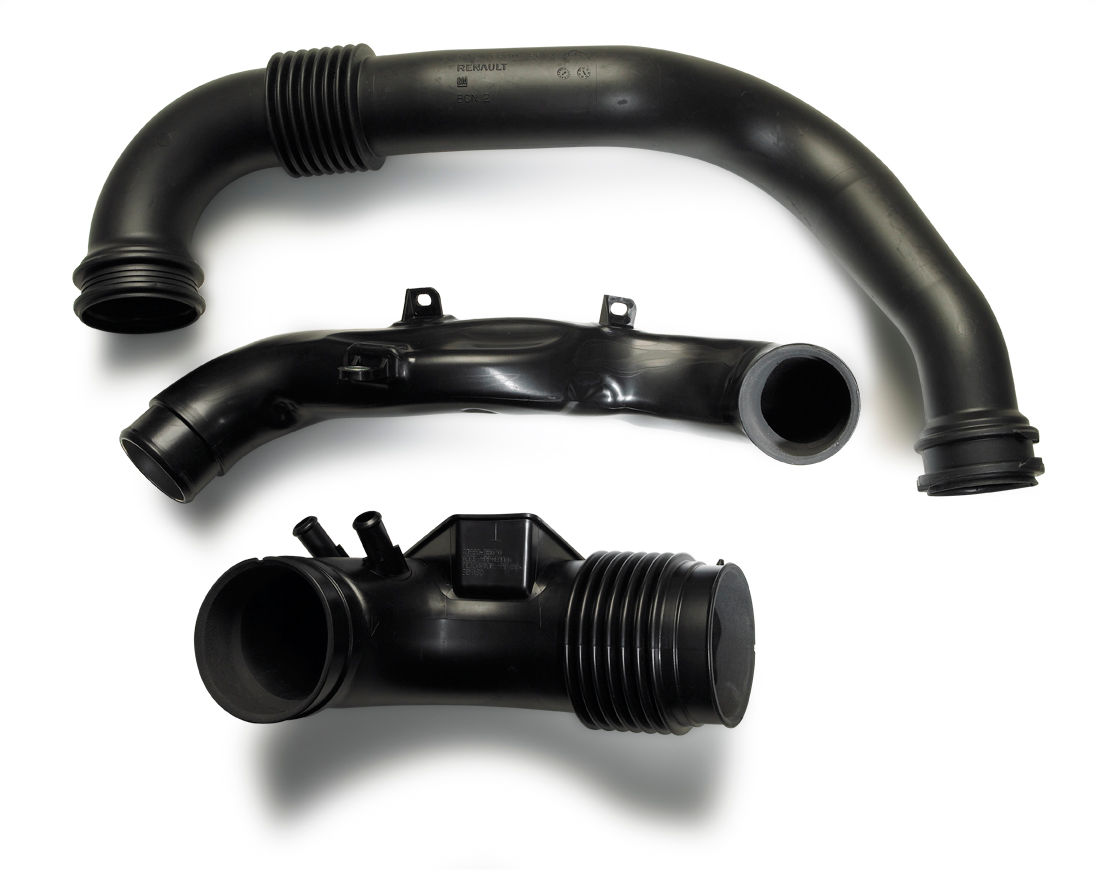

Under the Hood

Materials for under-the-hood applications have to perform in extreme conditions due to high temperatures, constant vibration, and contact with a variety of harsh fluids and other elements. Sarlink® TPVs perform well in this segment due to excellent flex fatigue behavior, flexibility over a wide temperature range (-45°C to 125°C), superior weatherability, and resistance to oil and grease. Suitable for extrusion and blow molding, Sarlink® also adheres well to polypropylene (PP) via multi-component molding, eliminating the need for metal fasteners.

  • Active Grill Shutters
  • Air Management Systems
  • Cable Ducts
  • Dust Covers
  • Rack & Pinion Boots
  • Fuel Fill Housing
  • Fuel Line Covers
  • Hoses & Tubes
boot
